ESPECIFICACIONES

  • Modelo

    CXD-A

  • Carga nominal

    2T

  • Altura de elevación

    1000MM

DESCRIPCIONES

Esta carretilla elevadora de baja altura con plataforma para el conductor tiene una capacidad de carga de 2000 kg y una altura de elevación de 1000 mm. Cuenta con un sistema de accionamiento de CA y control CURTIS de EE. UU. Incorpora un sistema de accionamiento vertical, dirección electrónica e hidráulica integrada de bajo nivel de ruido, con frenado regenerativo electromagnético y amortiguación de impactos en la carrocería. Los sistemas de seguridad incluyen regulación de velocidad continua, protección para múltiples controladores, respaldo con freno de emergencia y desaceleración automática en curvas. Admite baterías de plomo-ácido/litio de 24 V opcionales y componentes OEM no estándar, con un nivel de ruido de ≤70 dB(A) para una preparación de pedidos eficiente.

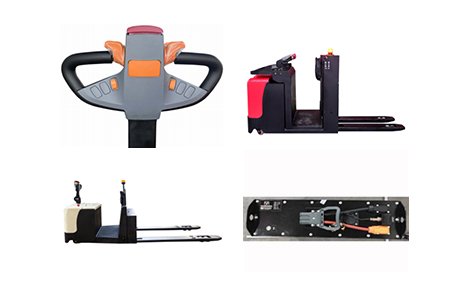

1

PARÁMETROS TÉCNICOS

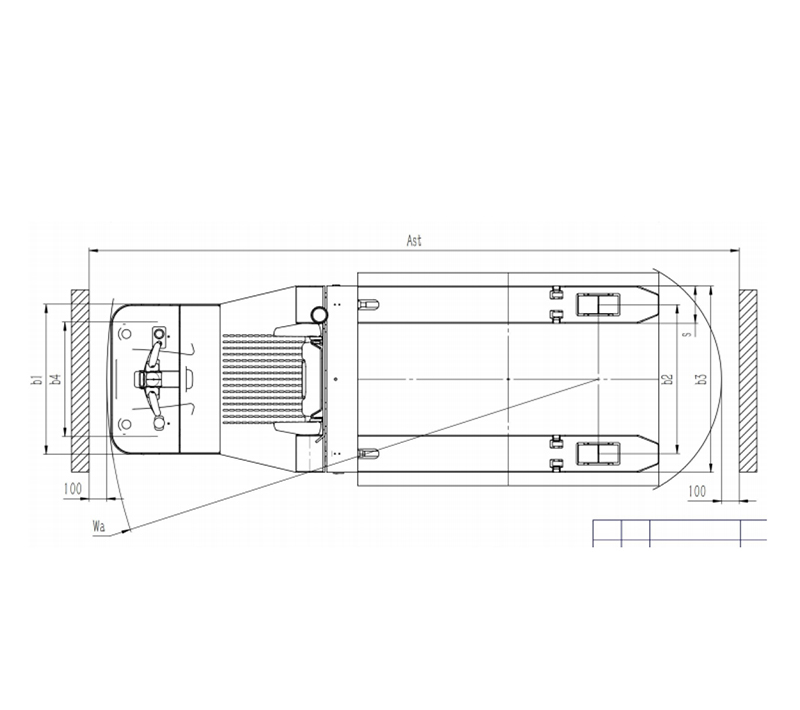

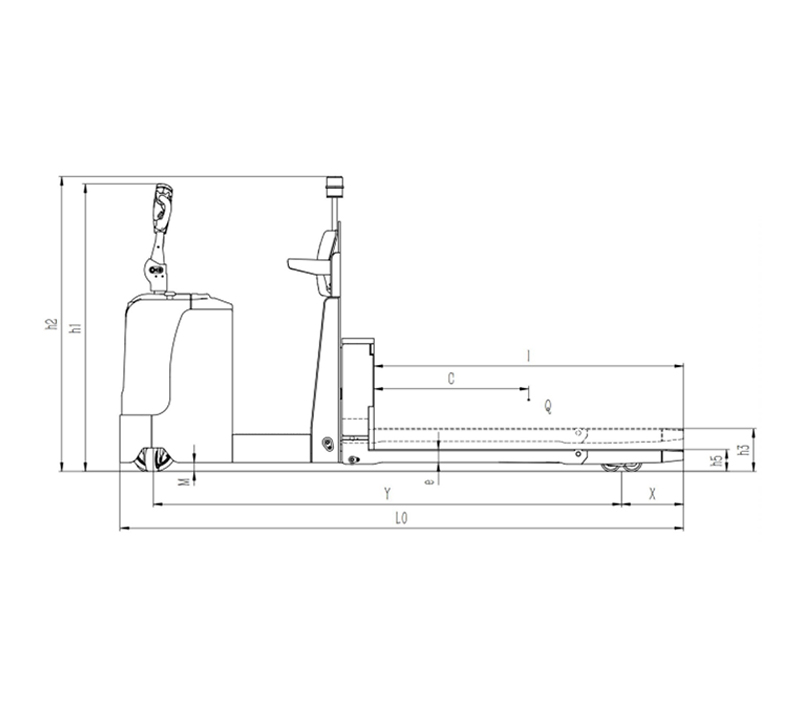

2 3
Model
CXD20
Type of power
Lead-acid battery
Driving type
Stand-on type
Rated load   Q(kg)2000
Lifting height  h3(mm)235
Overall length  L (mm)3095
Overall width  b1(mm)850
Fork dimensionss/e/l(mm)70(80)/210/1700
Outside width of forksb3(mm)1050
Height of rear tail plate off the groundm(mm)50
Height of fork off the ground(min)h5(mm)120
The height of the strobe warning light off the groundh2(mm)1620
Height of operating handle(max/min)h1(mm)1580/1190
Battery voltage/capacityV/Ah24/210
Weight of batterykg190
Vehicle weight(including battery)kg1220
Driving motor powerkw1.6
ifting motor powerkw0.8
Tire
Polyurethane
Dimensions of drive wheelmmφ230x75
Dimensions of bear wheelmm85*70
Dimensions of balance wheelmmφ130x55
Number of wheels (front/back)(x=drive wheel)mm4/2-1x
Front wheel trackb2(mm)840
Rear wheel trackb4(mm)645
WheelbaseY(mm)2570
Load CenterC(mm)850
Front OverhangX(mm)342
Tum radiusWa(mm)2775
Stacking channel width,pallet 1700X1200(1700 vertical)Ast(mm)3670
Full load axe load,drive side/bear sidekg1245/1795
No load axe load,drive side/bear sidekg855/365
Driving speed,full load/no loadkm/h4.0/5.0
Lifting speed,full load/no loadmm/s25/30
Descent speed,full load/no loadmm/s29/16
Maximum climbing,full load/no load%3.5/8
Braking typeElectromagnetic brake
Control mode
Mosfet control
Vehicle NoisedB(A)≤70
